Aluminum Powder Ball Mill Machine for Powder Making Wet Type/Client Request

Name: Aluminum Powder Ball Mill Machine for Powder Making Wet TypeClient Request
Brand: Sinolion
Price: 2 USD

Quality Aluminum Powder Ball Mill Machine for Powder Making Wet Type/Client Request for sale

Applicable Industries : Energy & Mining

Showroom Location : Canada, United Kingdom, United States, Brazil, Mexico, Russia, Australia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product

Warranty of core components : 1 Year

Core Components : Motor

Condition : New

Type : Ball Mill

Motor Type : AC Motor

Capacity(t/h) : 0.5-83t/h

Place of Origin : Henan, China

Brand Name : Sinolion

Dimension(L*W*H) : Based on different model

Weight : 3600 KG

Warranty : 2 years for the quality of equipment

Product name : Hot sale ball Mill machine for powder making

Liner : high manganese, rubber, ceramic(as client request)

Spare parts : liner, grinding balls, grinding media

Stone ball mill desiggn and foundation : supply by seller

Operation : automatic or manual

After sale service : the whole using life

Grinding way : wet type or dry type or batch type

Bussiness type : dolomite ball mill manufacturer

Including : gearbox, gear, pinion, liner, manual, specifications

Color : yellow, white, red, blue, gray( or as client request)

Price : $2,686.00/sets >=1 sets

MOQ : 1 unit

Contact Now

Hot sale aluminum powder ball mill machine for powder making

Product Description

Wet dry ball mill importer application range :

The ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.

Aluminum Powder Ball Mill Machine for Powder Making Wet Type/Client Request

Grinding is the last stage in the process of communication; in this stage the particles are reduced by a communication of impact and abrasion, either dry or in suspension in waterBall mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. It is performed in rotating cylindrical steel vessels known as tumbling mills.

Wet dry gold ball mill for sale technicial parameters:

Model	Rotation speed (r/min)	Weight of grinding media (ton)	Size of feed opening (mm)	Discharge size (mm)	Capacity (t/h)	Power (kw)	Weight (T)
Φ 900x1800	38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	3.6
Φ 900x3000	38	2.51	≤ 20	0.075-0.89	1.1-3.5	22	4.6
Φ 1200x2400	32	3.8	≤ 25	0.075-0.6	1.5-4.8	30-45	12.5
Φ 1200x3000	32	5	≤ 25	0.074-0.4	1.6-5	30-45	12.8
Φ 1200x4500	32	7	≤ 25	0.074-0.4	1.6-5.5	55	13.8
Φ 1500x3000	27	8	≤ 25	0.074-0.4	2-5.8	75-90	17
Φ 1500x4500	27	14	≤ 25	0.074-0.4	3-6.5	110	21
Φ 1500x5700	27	15	≤ 25	0.074-0.4	3.5-8	132	24.7
Φ 1830x3000	24	11	≤ 25	0.074-0.4	4-10	180	28
Φ 1830x6400	24	23	≤ 25	0.074-0.4	6.5-15	210	34
Φ 1830x7000	24	25	≤ 25	0.074-0.4	7.5-17	245	36
Φ 2200x5500	21	30	≤ 25	0.074-0.4	10-22	370	48.5
Φ 2200x6500	21	31	≤ 25	0.074-0.4	14-26	280	52.8
Φ 2200x7500	21	33	≤ 25	0.074-0.4	15-29	475	56

Aluminum Powder Ball Mill Machine for Powder Making Wet Type/Client Request

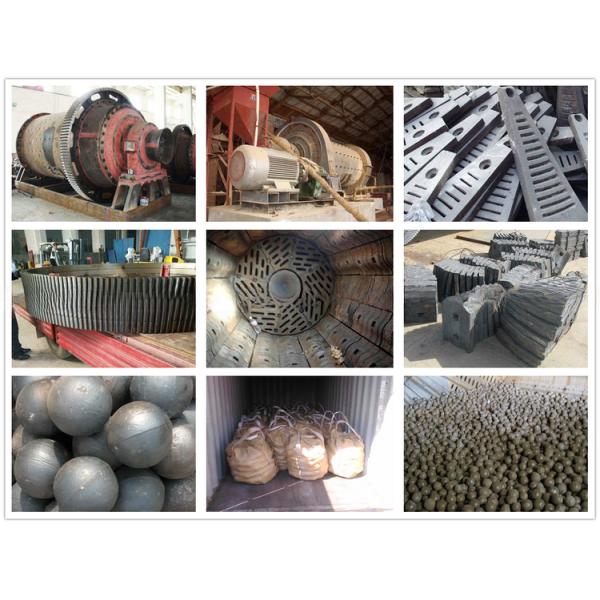

Ball miller machine:

Packaging & Shipping

Aluminum Powder Ball Mill Machine for Powder Making Wet Type/Client Request

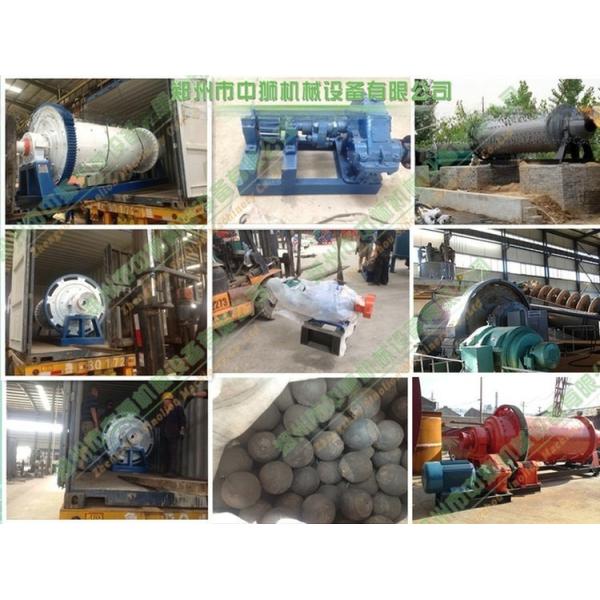

Working site

Ball mill machine working site of Zhengzhou Sinolion:

Aluminum Powder Ball Mill Machine for Powder Making Wet Type/Client Request

Our Services

1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.

2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery;

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.

3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.
